Mesin Pengisian Cairan Pencuci Piring

Rumah / Mengisi Mesin / Mesin Pengisian Cairan Pencuci Piring

Mesin Pengisian Cairan Pencuci Piring

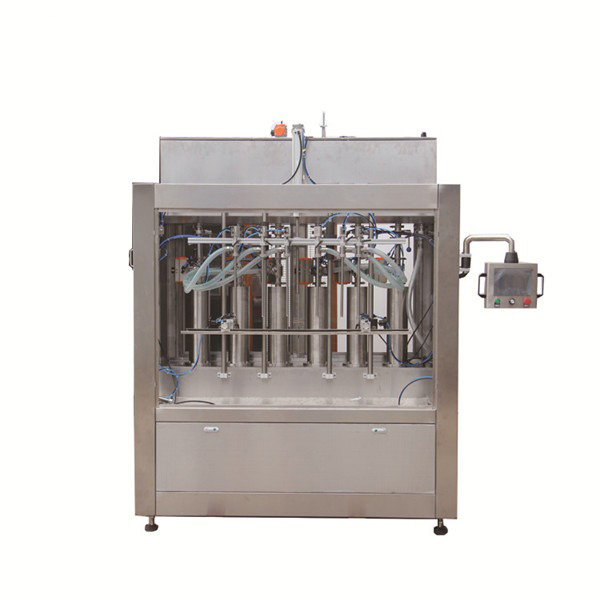

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Spesifikasi


mesin pencuci piring cair
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Deskripsi


CE dari EU
ISO9001
Memenuhi persyaratan GMP
longlife of service, low mainteinance rate

Fungsi utama


Mesin ini adalah mesin pengisian presisi tinggi canggih yang dapat menyelesaikan proses penghitungan botol, pengisian dan pembatasan secara otomatis.

fitur

1. Compact terstruktur, tampan, mudah dioperasikan dan sangat otomatis.

2. komponen kontak dengan bahan terbuat dari stainless steel, mudah dibersihkan.

3. Volume pengisian dikendalikan dengan katup film untuk memastikan akurasi.

4. Katup pengisian berkecepatan tinggi dan sangat akurat memastikan tidak ada kebocoran.

5. Itu dilengkapi dengan sistem pemberian makan topi efektif tinggi.

Opsi Bahasa

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Karakteristik utama:


1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Dapat menghafal banyak parameter, membantu untuk berbagai spesifikasi berubah, semua dosis pengisian dapat disesuaikan dengan layar sentuh.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Parameter teknis utama


BarangNamaParameter teknis
01Dimensi mesin (L * W * H)2200mm * 1400mm * 2800mm
02Berat mesinSekitar 1400Kg
03Kontainer membuka diameter dalam≥φ35mm
04

Wadah yang cocok

1 Liter .2 Liter
05Tinggi kontainer80-350mm
06

Sumber Daya listrik

AC 380V; 50HZ
07Kekuasaan5Kw
08Mengisi akurasi≤ ± 1%
09Sumber udara0.6Mpa stabil dan bersih udara terkompresi
11Jumlah nozel pengisi13
12Tinggi konveyor900mm ± 50mm
13kapasitas≤3200 botol / jam (ambil air sebagai tes)
14Botol dalam arah pengumpananDari kiri ke kanan

Rincian Cepat


Jenis: Mesin Pengisian
Kondisi: Baru
Aplikasi: Kimia
Jenis Kemasan: Botol
Bahan Kemasan: Kayu
Kelas Otomatis: Otomatis
Tipe Didorong: Pneumatik
Tegangan: 220v
Daya: 3KW
Tempat Asal: Shanghai. China (Daratan)
Brand Name: VKPAK
Dimensi (L * W * H): 2200mm * 1400mm * 2800mm
Berat: 1400
Sertifikasi: CE
Layanan Purna Jual Disediakan: Insinyur tersedia untuk melayani mesin di luar negeri
bahan: SS304
PLC: Panasonic
Layar sentuh: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
