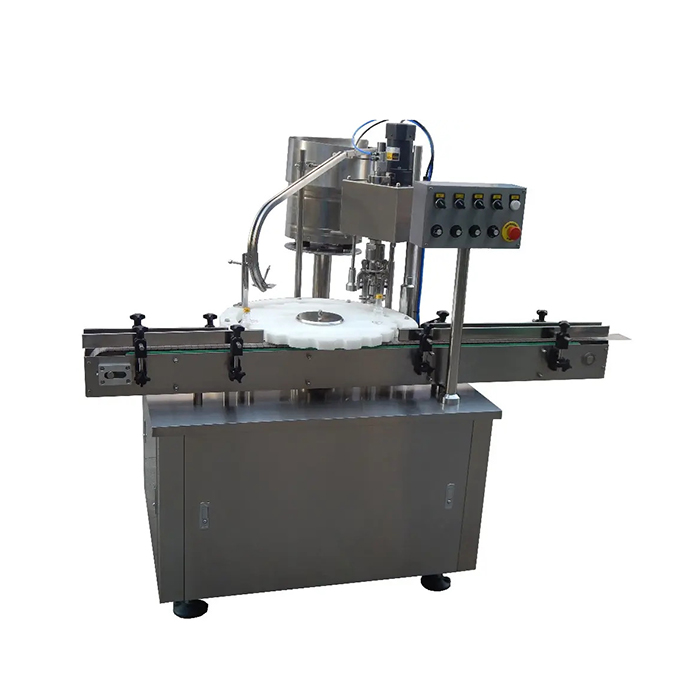

Mesin Capping Rotary Botol Susu Berkecepatan Tinggi

Mesin Capping Rotary Botol Susu Berkecepatan Tinggi

pengantar

---

This automatic capping machine is suitable for round cap, spray/pump tightening, can work with existing filling line, Electrical control movement, strong stability; with positioning devices, standard Capping, easy to operate; wide capping range suitable for different shapes and sizes; resolved the difficult problem on nozzle cap, pump cap, spray pumps, spray gun in hand button capping; lock lid with adjustable speed can be adjusted according to different cap tightness.Widely used in detergent, shampoo, shower gel, hand cleaning gel, laundry detergent and many other daily chemical products

Ciri

---

1, PLC controlled , integrated cap capping ( automatic cap sorting/cap feeding can be option)

2, inlet cap otomatis dan pengaturan posisi botol dan orientasi, kontrol torsi disesuaikan.

3, manipulasi lembut, tidak ada goresan dan cedera pada tutup dan wadah

4, changeover mudah, satu baris mampu beberapa produk

5, Terhubung dengan mesin pengisian dan mesin pelabelan dengan mudah

6, Struktur modul, memanipulasi pada layar sentuh, perawatan mudah

Spesifikasi

---

Nama	Mesin Capping Rotary Botol Susu Berkecepatan Tinggi
Model	WTPC-200
Aplikasi	Tutup pompa, tutup semprotan, tutup jarum & tutup bundar normal
Produksi	1800-2400B / Jam
Kekuasaan	220V 50Hz 0.7KW
Diameter topi	20-40mm
Tinggi botol	80-350mm
Kekuatan memutar	5-20N.m
Berat	300Kg
Dimensi	2000 * 1100 * 1550mm

Rincian Cepat

---

Jenis: Mesin Capping
Kondisi: Baru
Aplikasi: Pakaian, Minuman, Kimia, Komoditas, Makanan, Mesin & Perangkat Keras, Medis, Tekstil, Tutup pompa, Tutup semprotan, Tutup jarum & tutup bundar normal
Tipe Didorong: Listrik
Kelas Otomatis: Otomatis
Tegangan: 220V / 110V
Daya: 0.75kw, 220V / 110V
Jenis Kemasan: Botol
Bahan Kemasan: Kaca, Plastik
Tempat Asal: Shanghai, Cina (Daratan)
Nama Merek: NPACK
Dimensi (L * W * H): 2000 * 1100 * 1550mm
Berat: 300Kg, 300Kg
Sertifikasi: ISO9001
Layanan Purna Jual Disediakan: Insinyur tersedia untuk melayani mesin di luar negeri
Nama: Mesin Capping Rotary Botol Susu Berkecepatan Tinggi
Gaya: Mesin Capping Rotary Botol Susu Berkecepatan Tinggi
Fungsi:
Mesin Capping Rotary Botol Susu Berkecepatan Tinggi
Diameter Cap: 20-40mm
Tinggi botol: 80-350mm
Kekuatan memutar: 5-20N.m
Dimensi: 2000 * 1100 * 1550mm

---

• Automatic press is set on the plug, gland, out of the bottle in an ideal automation machinery, can easily with other equipment linkage, realize full automation .
• Simple operation,capping automatically PLC control,no bottle no capping, with high accuracy.
• Magnetic torque screw capping,never in-gage,cap unscrewing torque adjustable.It does not hurt bottles and caps.
• Automatic capping machine is mainly suitable for pharmaceutical, medical, food, chemical and other industries filling after tamponade, is a kind of, stability, strong commonality of equipment.
