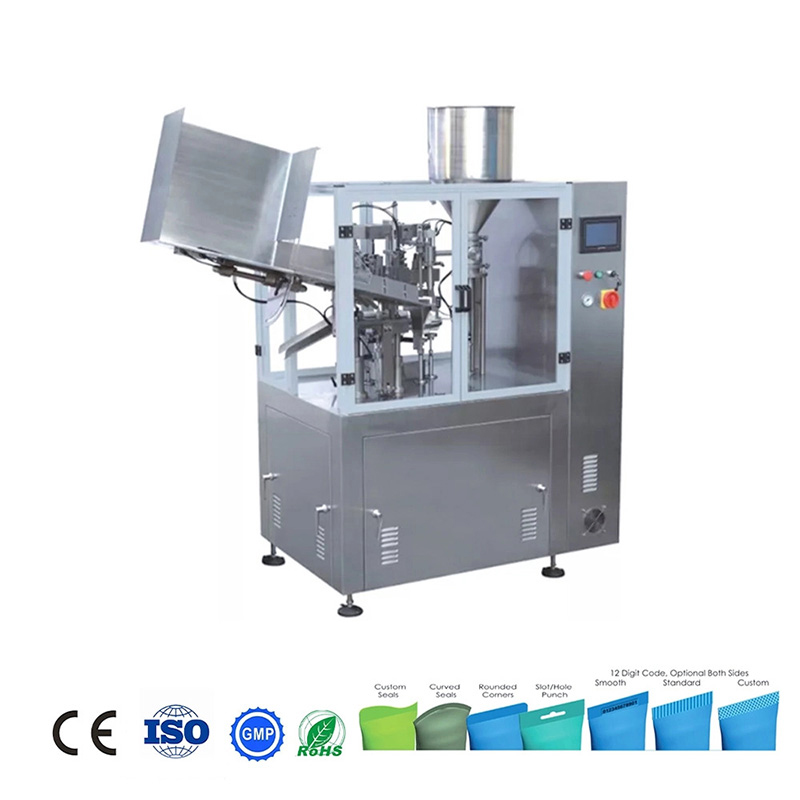

Produsen Mesin Pengisian Cream Tube Mengisi

Deskripsi Produk:


Mesin ini adalah peralatan teknis tinggi yang berhasil dikembangkan dan dirancang dengan memperkenalkan teknologi luar negeri canggih dan mengintegrasikan persyaratan GMP, dengan fitur struktur yang adil, fungsi penuh, pengoperasian mudah, pengisian akurat, pengoperasian stabil, serta kebisingan rendah. Itu mengadopsi dengan PLC controller, secara otomatis beroperasi dari mengisi bahan cair atau kecepatan tinggi sampai pencetakan nomor batch (termasuk tanggal pembuatan), ini adalah peralatan yang ideal untuk tabung ALU, tabung plastik dan beberapa tabung mengisi dan menyegel dalam kosmetik, farmasi, bahan makanan, perekat dll industri, patuhi standar GMP.
Produsen Mesin Pengisian Cream Tube Mengisi

Fitur:


1. Layar operasi bermutu tinggi dengan LCD display PLC dan tombol, pengoperasian yang mudah, dan lebih banyak humanisasi. Dengan penyesuaian kecepatan steplees, set parameter, jumlah keluaran, indeks tekanan, dan tampilan kegagalan.
2. Secara otomatis menjalankan pasokan tabung, daftar fotoelektron, pengisian gas inert (opsional), pengisian dan penyegelan bahan, pencetakan nomor batch, keluaran produk akhir.
3. Register photoelectron presisi tinggi mengurangi ruang lingkup aberasi kromatik.
4. Menyesuaikan bagian eksternal dalam posisi, posisi tampilan digital, penyesuaian nyaman dan akurat (cocok untuk berbagai produk yang memproduksi).
5. Mekanik, photoelectron, listrik, pengendalian integratif pneumatik, mencapai tidak ada tabung tidak ada fungsi pengisian; Menunggu jika posisi kesalahan atau tekanan tabung terlalu rendah, mesin otomatis berhenti jika membuka pintu pelindung.
Produsen Mesin Pengisian Cream Tube Mengisi

ModelGF-400 AGF-400 B
Bahan tabungTabung logam, tabung ALUTabung plastik, tabung senyawa
Diameter tabung10-42 mm10-60 mm
Panjang tabung50-250 (dapat disesuaikan)50-250 (dapat disesuaikan)
Mengisi volume5-500ml / cabang (Dapat Diatur)5-800ml / cabang (Dapat Diatur)
Mengisi akurasi≤ ± 1%≤ ± 1%
Kecepatan3-10 r / mnt2,5-7 r / mnt
Kapasitas produk30-60 Pc / mnt30-60 Pc / mnt
Pasokan udara0,55-0,65mpa0,55-0,65mpa
Tenaga motor2kw (380V / 220V 50Hz)2kw (380V / 220V 50Hz)
Kekuatan penyegelan panas3KW3KW
Dimensi keseluruhan2620 × 1020 × 1980 mm2620 × 1020 × 1980 mm
Berat mesin1100 kg1100 kg

Info dasar


Aplikasi: Tempel
Spesies Pembentuk: Pembentukan Botol
Tipe Didorong: Listrik
Kemasan: Soft Tube
Daya Motor: 2kw (380V / 220V 50Hz)
Dimensi Keseluruhan: 2620 × 1020 × 1980mm
Trademark: VKPAK
Asal: Shanghai, Cina
Kelas Otomatis: Otomatis
Jenis: Mesin Filling dan Sealing
Fungsi Pembentukan: Mengisi
Tipe Bahan: Tempel
Kapasitas Produk: 30-60 PC / Min
Daya Penyegelan Panas: 3kw
Berat Mesin: 1100kg
Spesifikasi: CE


A cream tube filling packing machine is a type of packaging machinery designed for filling and packaging various types of creams, gels, pastes, and other similar products into tubes. This type of machine typically consists of several components, including a tube feeder, filling unit, sealing unit, and cutting unit. The overall production process is automated, which ensures the accuracy and consistency of the fill, as well as the speed of production.

The specific features and specifications of a cream tube filling packing machine may vary depending on the manufacturer and the intended application, but some common features include:

High precision: The filling system is designed to be accurate, with the ability to fill the exact amount of product specified, with minimal waste.

Versatility: The machine can be used for filling and packaging a wide range of products, including creams, gels, pastes, and other similar products.

Hygiene: The machine is designed to meet hygiene standards, with components made from food-grade stainless steel and other non-corrosive materials. The filling system is also designed to prevent contamination, ensuring the safety and quality of the product.

Easy to operate: The machine is typically user-friendly, with intuitive controls and easy to follow instructions. The system is also designed to be easy to maintain, with minimal downtime required for cleaning and servicing.

High production rates: A cream tube filling packing machine is designed to work at high production rates, with the capability of filling and packaging hundreds or even thousands of tubes per hour.

Overall, a cream tube filling packing machine is an efficient and reliable solution for filling and packaging various types of creams and gels into tubes. It is a popular choice for manufacturers who need to package products for retail or commercial use, with the ability to meet high standards of accuracy, consistency, and hygiene.
