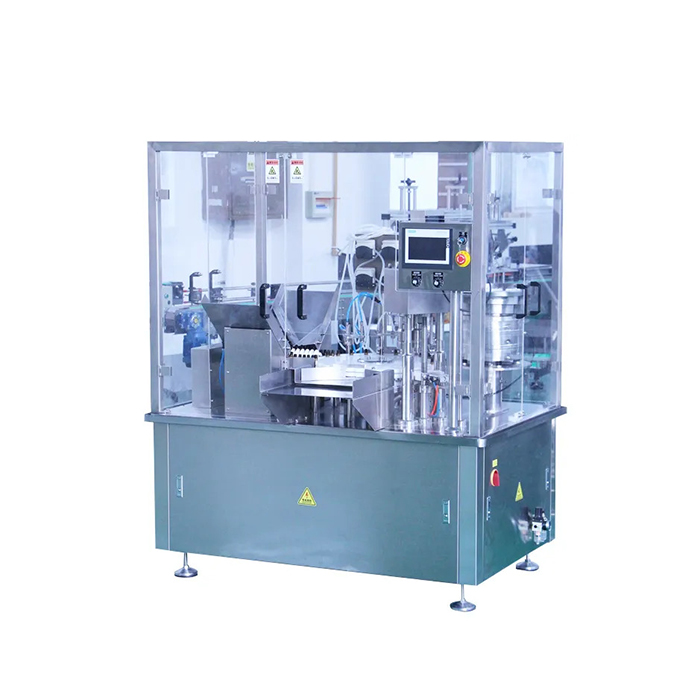

2-in-1 Otomatis Mengisi Botol Dan Mesin Capping Untuk Cairan

Mesin pengisian dan capping botol otomatis 2-in-1 untuk cairan

1. The material which contact directly with the oil is the SUS304 (GMP), made in China.

2. The 3-in-1 is mainly used to food, daily,cosmetic Paste filling and capping.

3. Mesin mengisi mengadopsi komponen listrik merek terkenal di dunia, tingkat kegagalan rendah, kinerja yang dapat diandalkan, umur panjang.

4. Volume pengisian sederhana dan pengaturan kecepatan pengisian oleh tampilan layar sentuh, penampilan cantik.

5. Ada fungsi tidak ada botol tanpa mengisi, pengisian otomatis kontrol tingkat cair. Tidak perlu mengganti bagian, berbagai spesifikasi bentuk botol dapat diubah dengan sangat cepat tanpa perlu penggantian bagian.

6. Mengisi kepala dilengkapi dengan pencegah ledakan khusus, mengisi tidak ada kabelrawing, fenomena menetes.

Proses kerja:

---

Jalur pengisian otomatis memiliki sistem servo. Buatan menempatkan botol kosong di sabuk konveyor, secara otomatis memasuki garis pengisian sesuai dengan pesanan oleh sistem kontrol PLC, kemudian mengisi bahan secara lengkap.

Konfigurasi:

---

1. Bahan Mesin: SUS304

2. Bahan Kontak: SUS316

3. Bahan Istirahat Bagian: alumina kaku

4. Mengisi Servo Motor: Taiwan TECO

5. Sistem Kontrol PLC: Siemens

6. Layar Sentuh: Siemens

7. Komponen Sensor Fotoelektrik: Korea AUTONICS

8. Peralatan Listrik bertegangan rendah: Schneider

Parameter Teknis

---

Mengisi Volume	100-200ml (dapat disesuaikan untuk ukuran Anda)	Kekuatan mesin	1.5KW
Mengisi Kecepatan	40-60B / M	Tegangan Suplai	AC 220 / 380V 50 / 60hz
Mengisi Presisi	+-0.5%	Berat mesin	360KGS
Tekanan udara	0.4-0.6MPa	Ukuran mesin	3500 * 1580 * 2190mm

Rincian Cepat

---

Jenis: Mesin Pengisian
Kondisi: Baru
Aplikasi: Minuman, Kimia, Komoditas, Makanan, Medis
Jenis Kemasan: Botol, Kaleng, Karton, Kasing, Kantung Stand-up
Bahan Kemasan: Kaca, Logam, Plastik
Kelas Otomatis: Otomatis
Tipe Didorong: Listrik & Udara
Tegangan: 220V / 380V
Daya: 1.6KW
Tempat Asal: Shanghai, Cina (Daratan)
Nama Merek: NPACK
Dimensi (L * W * H): 2200X2100X2200MM
Berat: 450kg
Sertifikasi: CE ISO
Layanan Purna Jual Disediakan: Insinyur tersedia untuk melayani mesin di luar negeri
Nama produk: 2-in-1 botol otomatis mengisi dan mesin capping untuk cairan
Bahan: SUS304 / 316
Fungsi: pengisi cair
Penggunaan: Kemasan Minuman
Mengisi bahan: Cairan Mengalir
Jenis botol: Botol Bulat
Kapasitas: 40-150B / M
Garansi: 12 Bulan

---

A 2-in-1 automatic bottle filling and capping machine for liquid is a piece of equipment used for filling bottles with liquid and then capping them. The filling and capping process is done automatically, which saves time and reduces the need for labor. This machine is used in various industries, including food and beverage, pharmaceuticals, and cosmetics.

The filling part of the machine works by using a volumetric filling method to fill the bottles with the liquid product. The volumetric filling method ensures that the bottles are filled with the correct amount of product, which is important in industries where the correct dosage is crucial. The machine can fill a range of bottle sizes and types, making it versatile for use in different industries.

The capping part of the machine uses a mechanical method to place the caps on the filled bottles. The caps can be of different sizes and shapes depending on the type of product being packaged. This machine ensures that the caps are securely placed on the bottles to prevent any leaks or spills.

The 2-in-1 automatic bottle filling and capping machine is an essential piece of equipment for any manufacturing process that involves liquid products. It can increase productivity, reduce labor costs, and ensure that the products are packaged consistently and correctly. The machine is easy to operate and can be customized to meet the specific needs of the business, making it a valuable investment.
