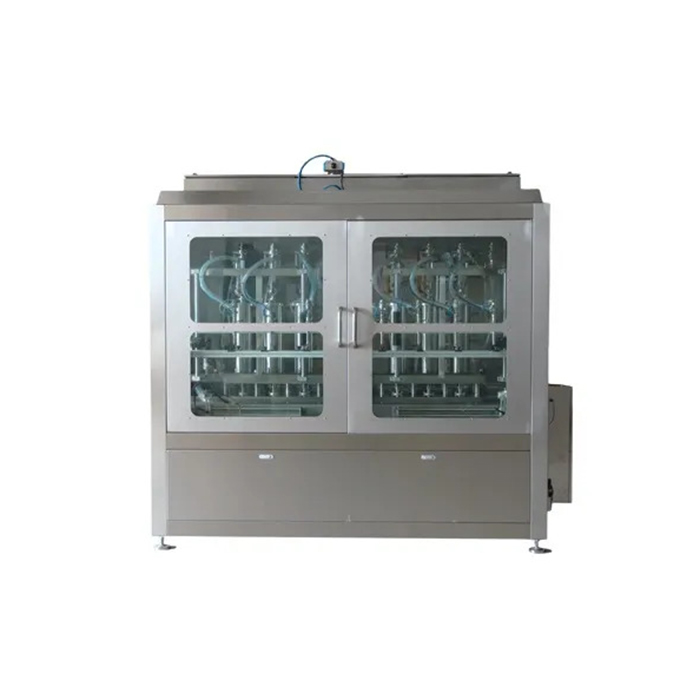

Automatic PET Bottle Filling Machine / Bottling Line / Project

mesin three-in-one untuk botol PET mengintegrasikan fungsi pembilasan, pengisian, dan penutupan bersama. Berdasarkan teknologi canggih di luar negeri, dan dirancang sesuai dengan tuntutan pemrosesan pengisian air

Fitur utama

---

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Jumlah posisi kerja	Membilas 32, mengisi 32, membatasi 10
Kapasitas produksi	15000BPH (500ml)
Tekanan sumber udara	0.7Mpa
Konsumsi udara	1.2m3 / mnt
Membilas tekanan air	0,2-0,25Mpa
Membilas kapasitas air	2.5T / H
Tenaga motor utama	3.2kW
Kekuatan total	4.8kw
Dimensi	4250X2150X2200mm (L × W × H)
berat	5200kg

Kami juga menyediakan Pabrik Pembotolan Air Murni Otomatis Lengkap

Ini Termasuk 4 bagian utama:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

Deskripsi utama garis lengkap:

---

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5.  We provide the engineers for customer installation, training in customer's factory.

Model dan Daftar Kecepatan

---

Model	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Mencuci tangan	8	14	16	24	32
Mengisi katup	8	12	16	24	32
Tutup tangan	3	5	5	8	10
Botol PET / Kaca Cocok (150ml hingga 2000ml)
Kapasitas (kecepatan) Berbasiskan 500ml	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH

Pemasok Merek Komponen Listrik

---

Komposisi utama	Keterangan Pemasok
PLC	Mitsubishi (Jepang), Siemens (Jerman)
Layar sentuh	Weinview (Taiwan)
Konverter frekuensi	Mitsubishi (Jepang), Siemens (Jerman)
Saklar udara	Schneider (Prancis)
Pemecah	Siemens (Jerman)
Kontaktor	Siemens (Jerman)
Saklar fotolistrik	Omron (Jepang)

Rincian Cepat

---

Jenis: Mesin Pengisian
Kondisi: Baru
Aplikasi: Minuman, Kimia, Medis
Jenis Kemasan: Botol
Bahan Kemasan: Plastik
Kelas Otomatis: Otomatis
Tipe Didorong: Listrik
Tegangan: 380V / 220V
Daya: 4.8KW
Tempat Asal: Shanghai, Cina (Daratan)
Nama Merek: NPACK
Dimensi (L * W * H): 4250X2150X2200mm
Berat: 5200KGS
Sertifikasi: CE, ISO, SGS
Layanan Purna Jual Disediakan: Insinyur tersedia untuk melayani mesin di luar negeri
Pabrik: MESIN LINK
Ukuran Botol: 150ml hingga 2000ml
Diameter Leher Botol: 15-55mm
Bahan Botol: Plastik / Kaca
Kecepatan (berdasarkan botol 500ml): 15000B / H
Sistem Kontrol: Layar Sentuh PLC (MITSUBISHI JAPAN)
Cap: Screw / Press Cap
Cap lift: Sudah
Mengisi Cairan: Air Mineral / Murni

---
