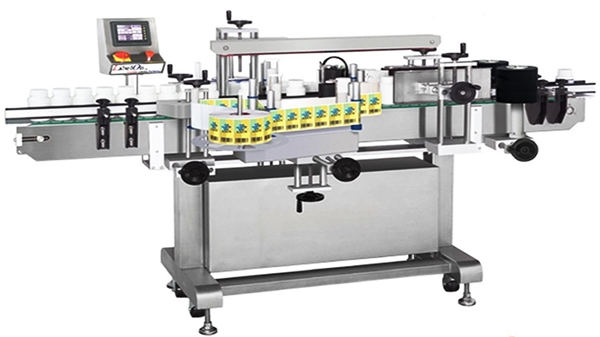

Mesin Pelabelan Botol Kaca Sisi Ganda Otomatis

Deskripsi Produk

Intellectual Labeling Machine is controlled by the PLC, HMI and servo drive labeling. The machine is easy to operate and has helping function and fault indication function. It is suitable for the self-adhesive labeling of round bottles.

Fitur fungsional

1. The servo motor labeling structure and PLC control make sure the high speed and precision of labeling
2. The labeling part uses the handle adjusting, it can also adjust for the bottles with conicity.
3. The bi-bottle separating structure which makes the space between bottles more accurate.
4. The individual label rolling structure makes the labeling more precise and accurate.
5. The labeling module uses the imported emery, composed the drivenroller structure : good friction which ensures the stability of the labeling.
6.The machine uses the structure of wheels combines with feet which makes the moving of the machines easier.
7.A soft polyurethane is used in the center of the labels, it is applicable to different label rolls.
8.An instruction note is on the machine which is convienient for the operating personnel to change the labels.

Parameter teknologi

Rincian Cepat

Jenis: Mesin Pengisian
Kondisi: Baru
Aplikasi: Minuman, Kimia, Komoditas, Makanan, Mesin & Perangkat Keras, Medis
Jenis Kemasan: Barrel, Botol, Kaleng
Bahan Kemasan: Kaca, Logam, Plastik
Kelas Otomatis: Otomatis
Tipe Didorong: Listrik
Voltage: 220V/50hz
Power: 2.2 KW
Tempat Asal: Shanghai, Cina (Daratan)
Nama Merek: NPACK
Dimension(L*W*H): 2500*1000*1700 mm(L*W*H)
Berat: 350kg
Sertifikasi: CE GMP ISO
Layanan Purna Jual Disediakan: Insinyur tersedia untuk melayani mesin di luar negeri
Capacity: 120p/min.
Precision: ±1mm
Applicable Bottle Diameter: 35-95mm
Bottle Height: 80-230mm
Label Height: 20-140mm
Label Length: 50-320mm
Power source: AC220V, 50Hz
Bahan: 316L + 304 Stainless steel
